electrostatic powder coating machine

Our company is specialized in the manufacturing of powder coating equipment, our major products include:powder coating machine,powder coating guns,curing oven,automatic reciprocator,powder spray booth,powder recycle system, powder production line,and many kinds of spare parts for powder coating equipment etc.

Get A Quote
Contact Us

electrostatic powder  coating machine

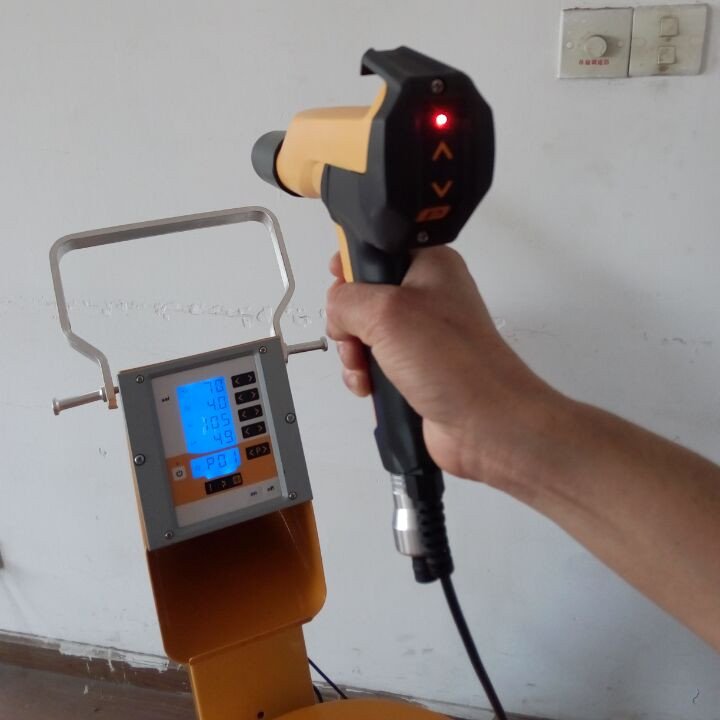

Electrostatic powder coating guns deliver superior coating coverage and efficiency across all type of applications. The powder gun incorporates an air purge cleanable design for fast and easy cleaning both inside and outside. These guns are made by specially engineered material that minimizes wear and impact fusion. These guns are ideal for quick and color changed powder applications. 100 kV Electrostatic Powder Coating Machine combine production – proven powder spray, gun and control technology and performance suitable for all type of jobs with low and mass volume in any Batch & Conveyorised system.

Features:

  • Sturdy, Modular construction for easy maintenance.
  • Complete flexibilities and minimum breakdown possibilities.
  • Minimum “Faraday Cage Effect” and “Back Ionization”.
  • Highest transfer efficiency with finger touch trigger.
  • Highest “wrap around” effect with even thickness.
  • Quick clean “Stainless Steel hopper”
  • Easy to operate user friendly controls.
  • Requires minimum training to operate
Power supply

AC220-240V, 50-60Hz

Total power

40W

Output voltage

DC24v, 0~100kv adjustable

Output current

≤150µA

Polarity

Negative

High-voltage module

Inside

Powder output volume

50~600g/min, adjustable

Compressed air

0.4-0.8MPa

Compressed air consumption

Max. 25NM3/min

Weight of spray gun

500g

Protection level

IP54
